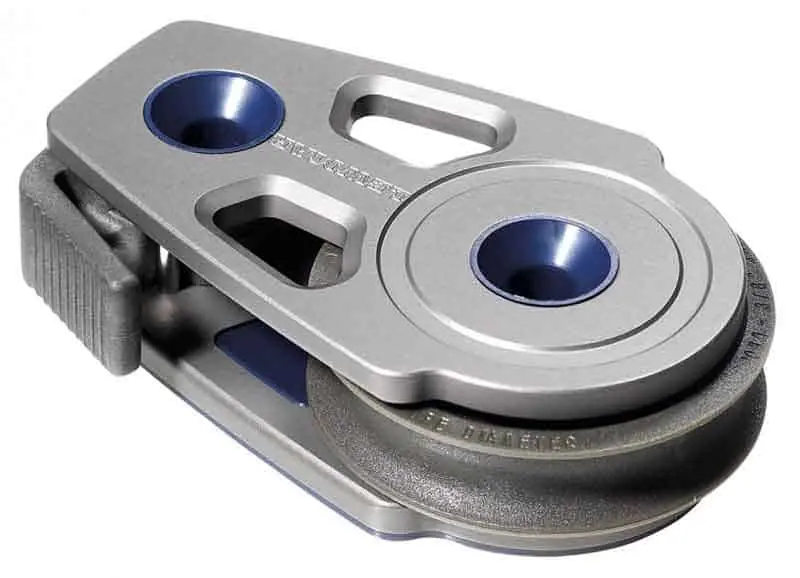

Lewmar Synchro Jamming Footblock

List price:104.50 ex. VAT Price:88.39 ex. VAT
Price: 106.95 (inc. VAT)
You save: €16.11 (15%)
Save 15%
LEWMAR 29927264BK
2 in stock
7 days (approx.)
+
Shipping Costs:

High quality footblock ideal for Genoa and Main sheets and other high load applications. Lewmar's Synchro footblocks use alloy cheeks, isolators in the bolt holes to prevent corrosion and a moulded base plate to hold sealant and prevent ingress into the sheave. The Synchro Jamming Footblock is designed to temporarily hold a sheet while it is released or transferred to another winch.

Synchro Footblocks can be double stacked and are available in 60mm, 72mm and 90mm versions.

  • Standard and jammer options can be double stacked
  • Two-step jammer action keeps lever close to side of the block
  • SS hollow cast jammer, holds fast without tearing the line
  • Optimised jammer shape holds line central on the sheave
  • Tough alloy cheeks
  • Synchro sheave loads match the same sized blocks
  • Twin fixings with insulating inserts
  • Wide head for a solid base, block will not “roll” on the deck
  • Moulded base plate with recess to hold sealant around fixing screws and prevent ingress onto the bearing and sheave

Lewmar Synchro Footblock & Jamming Footblock

Ref Model

Working

Load

kg.

Breaking

Load

kg

Weight Fixings

A

mm

B

mm

C

mm

L29926064 60mm Jamming 800 1600 190 M8 98 51 59
L29927264 72mm Jamming 1200 2400 250 M8 110.6 58 71
L29929064 90mm Jamming 2000 4000 480 M10 134 59 89



  Product Code Model Availability Price
Lewmar Synchro Jamming Footblock - bluemarinestore.com
LEWMAR 29926064BK
60 mm Jamming
In stock
104.96 (inc. VAT)
86.74 (ex. VAT)
Lewmar Synchro Jamming Footblock - bluemarinestore.com
LEWMAR 29927264BK
72 mm Jamming
In stock
106.95 (inc. VAT)
88.39 (ex. VAT)
