Glomex RA106 Stainless Steel Whip Antenna with Cable

List price:91.00 ex. VAT Price:82.23 ex. VAT You save:8.77 (10%)
Price: 99.50 (inc. VAT)

Save 10%
GLOMEX RA106SLSSB18
In stock
+
Shipping Location:

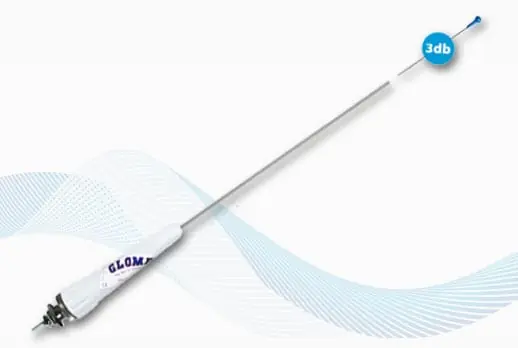

The Glomex RA106SLS series antennas are lightweight stainless steel 3db 900 mm (35'') whip antennas which can absorb extreme forces without damage. Very reliable and hard wearing with very low windage, they are designed for sailboat masthead installations but are also ideal for smaller motorboats and tenders. The R106 Series feature a built in waterproof and solderless Glomex “RA106 solderless” special connector at the base of the antenna and is supplied with either 18m or 25m of double screened coaxial cable.

Also included:

Glomex RA106 Included Accesories

18 or 25 metres Coax Cable

1 x Masthead Bracket

1 x RA132 solderless PL259 plug for the VHF end of the cable

1 x RA140 PVC protection boot

1 x RA140 deck gland


Specifications:

Frequency Range: 156/162 Mhz

Average Gain: 3dB

Impedance: 50 Ohms

Polarization: Vertical

SWR:  ≤ 1,3 at 156,8 MHz

Max Power Input: 100 W DC

Ground: Yes

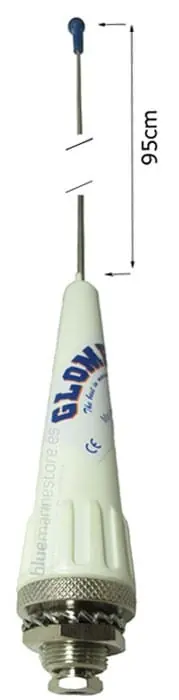

Height: 900mm/35''

Weight: 180g/6,35oz

Connection: RA106 solderless connector

  Product Code Included Cable Availability Price
Glomex RA106 Stainless Steel Whip Antenna with Cable - bluemarinestore.com
GLOMEX RA106SLSSB18
18M Coaxial Cable
In stock
82.23 ex. VAT

99.50 (inc. VAT)

Glomex RA106 Stainless Steel Whip Antenna with Cable - bluemarinestore.com
GLOMEX RA106SLSSB25
25M Coaxial Cable
Temporarily out of stock
90.70 ex. VAT

109.75 (inc. VAT)
