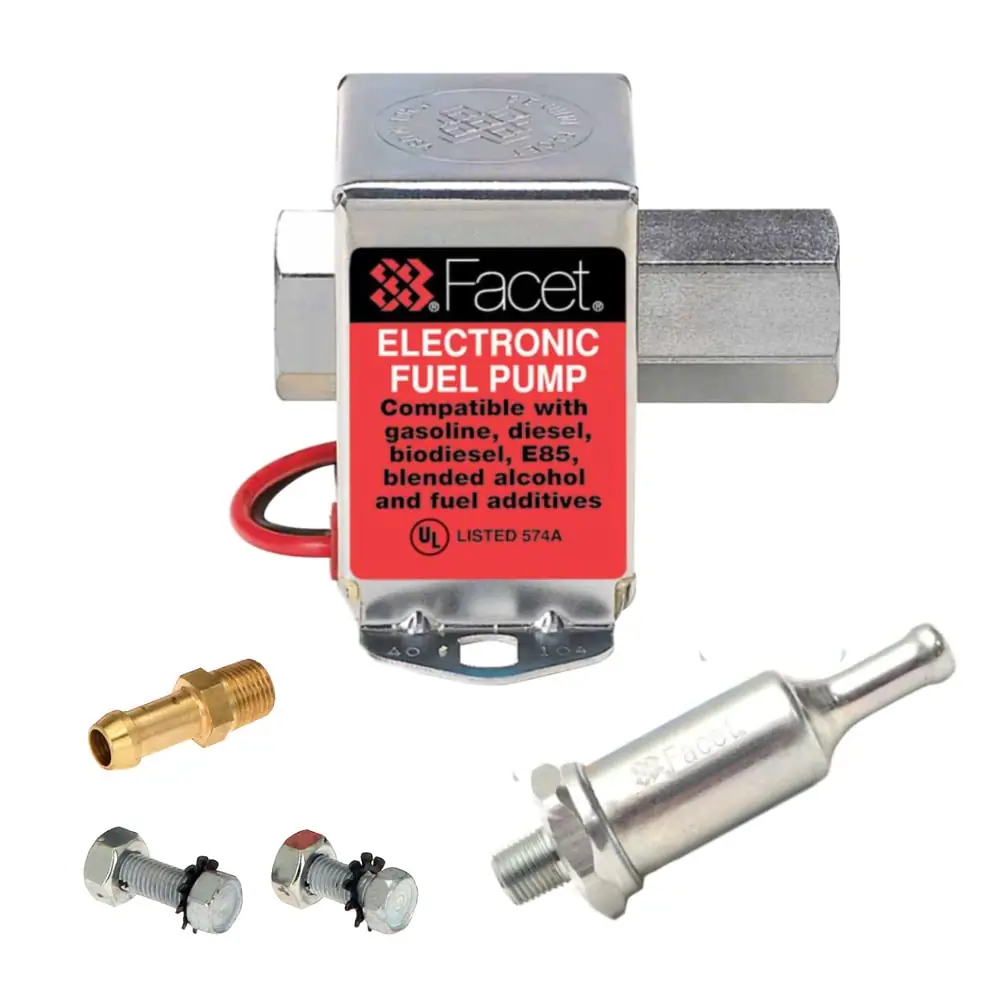

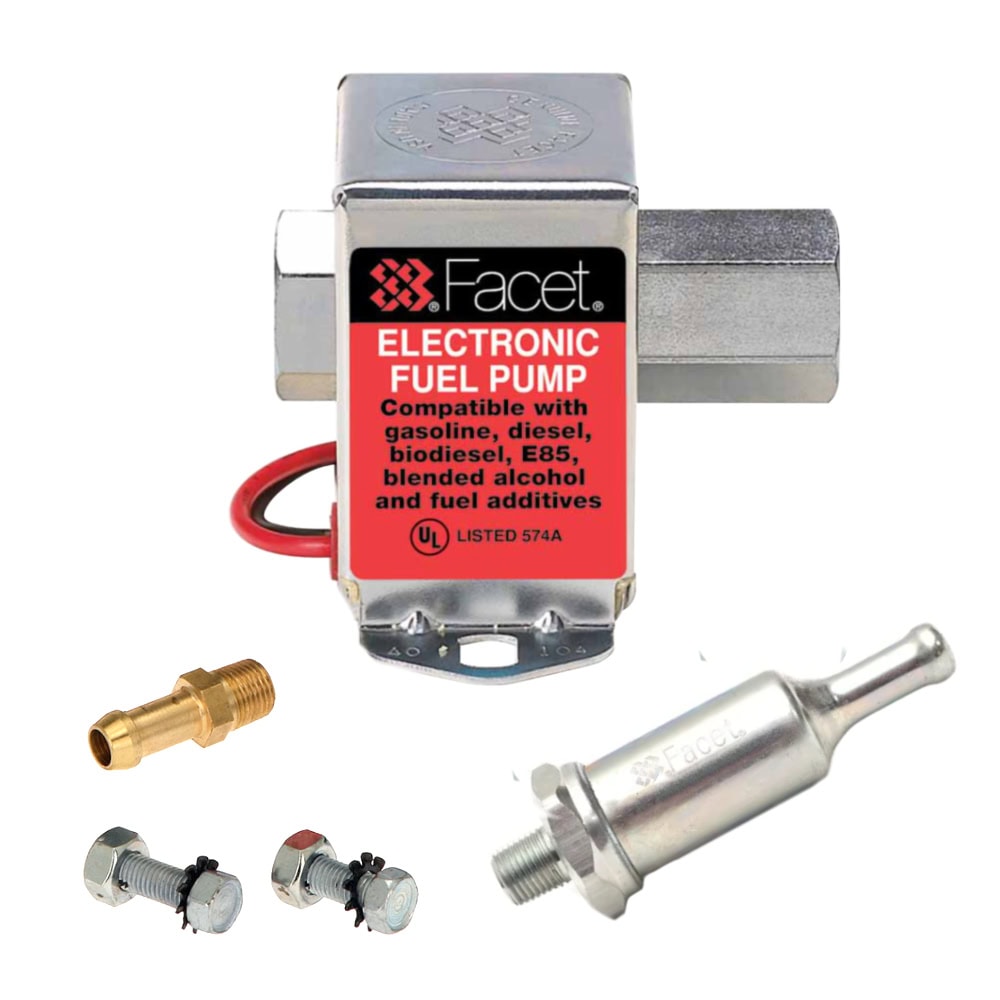

Facet Cube Solid State Electronic Fuel Pump Kit
Very reliable 12v DC electronic fuel pump ideal for marine engines, generators, diesel heaters as well as commercial and industrial applications complete with 8mm combined hose connector-filter, brass 8mm hose output connector and mounting bolts.
Fuel Compatibility - compatible with gasoline, diesel, biodiesel, blended alcohol fuels and fuel additives.
Solid State Reliability - proven on thousands of applications. No electrical contacts. No bearings or diaphragms to wear out or fatigue. Lasts four to five times longer than many other electric fuel pumps.
Easy to Install - two-bolt installation plus the small size makes installation easy. For best results, mount the pump close to the fluid or fuel tank.
Eliminates Vapor Lock - when properly installed on most vehicles a constant, smooth, dependable supply of fuel under pressure is assured in the hottest weather.
Features:
- 12 Volt DC with only 1.6 amps power consumtion
- 30 cm minimum dry lift (more once primed)
- 94-145 litres/hr
- 7 - 10 PSI
- Transient Protection
- State of the art sealed electronics
- Reverse Polarity protection
- UL Certified
- ELV Compliant
- Self-Priming and Self Regulating
- Only 85 grams
- Only 7.62cm
- 1/8 - 27 INT female connectors
Three models normally available:
| Ref. | Pump | Volts V | PSI | BAR | L/h | Min. Dry Lift cm |
| FEP42SV | 40104 | 12 | 1.5 - 4 | 0.10 - 0.28 | 95 | 91 |
| FEP12SV | 40106 | 12 | 4 - 7 | 0.28 - 0.48 | 121 | 91 |
| FEP289SV | 40289 | 12 | 4-7 | 0.28 - 0.48 | 114 | 150 |
Sizes in mm.
| Code | Facet Cube Kit | Availability | Price | |
|---|---|---|---|---|
|
FACET FEP12SV
|
In stock
|
€99.95 (inc. VAT)
€82.60 (ex. VAT) |
|
|
FACET FEP42SV
|
In stock
|
€99.95 (inc. VAT)
€82.60 (ex. VAT) |
|
|
FACET FEP289SV
|
7 days
|
€100.95 (inc. VAT)
€83.43 (ex. VAT) |
