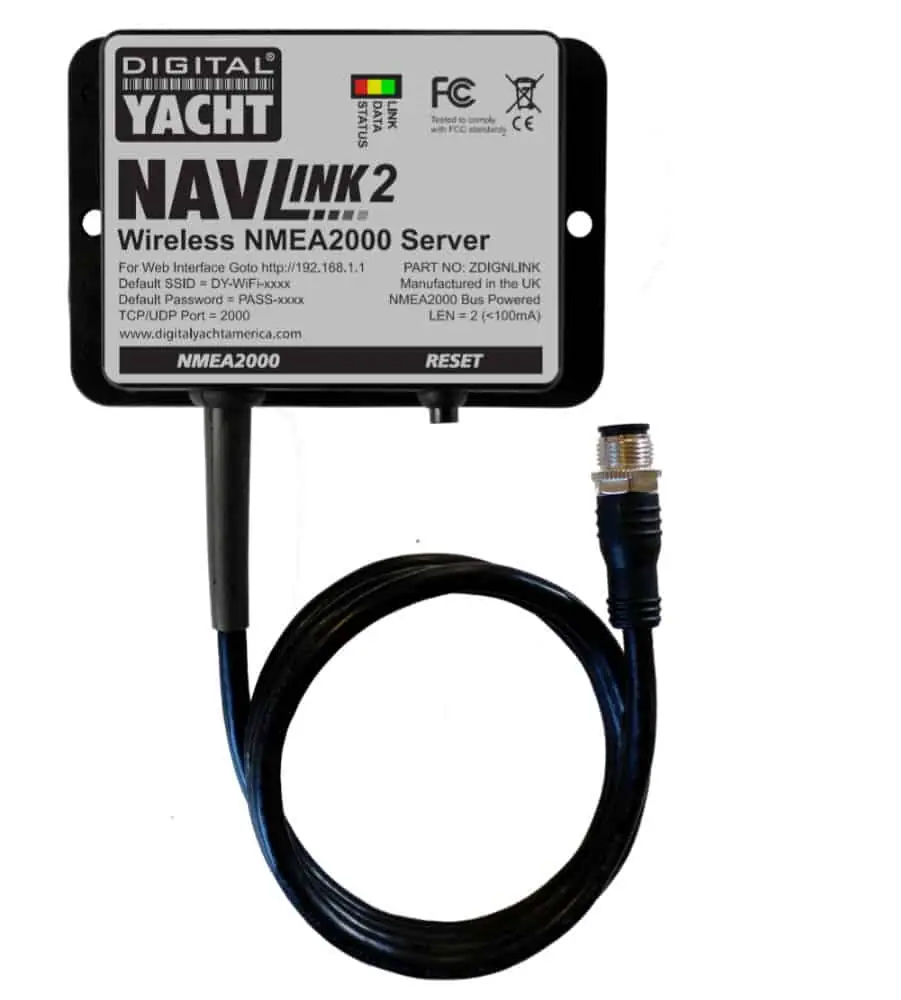

Digital Yacht NavLink 2 NMEA 2000 WiFi Server

List price:250.00 ex. VAT Price:238.80 ex. VAT
Price: 288.95 (inc. VAT)
You save: €11.20 (4%)
Save 4%
DIGITAL YACHT ZDIGNLINK
Last one in stock
+
Shipping Costs:

Digital Yacht

Easily add a Wi-Fi hotspot on-board to share NMEA 2000 data wirelessly with mobile devices.

NavLink 2 is a NMEA 2000 to Wifi server designed to make NMEA 2000 navigation data available for apps on smartphones, tablets, iPads and PCs via Wi-Fi. It connects to the NMEA 2000 back bone with the included NMEA 2000 Micro drop cable (male) and is self-powered from the NMEA 2000 network so installation is very quick and simple.


Compatible with most modern navigation apps and software

The NavLink 2 creates a secure, password protected, local Wi-Fi network which allows AIS and GPS data to be sent to both iOS and Android apps wirelessly. If you already have a WiFi network onboard, the Navlink 2 can connect to that network, boats that already have an existing network or devices which have a dedicated network such as the Furuno wireless radar which require operation through their own network. Compatible with many apps such as:


Easy Setup with a Web Browser

This new version of the Navlink can now be programmed through its simple browser interface. Use the browser on any device to logon to the IP address any configure the Navlink2

TCP and UDP for Multiple Connections

The Navlink 2 supports both TCP/IP for maximum compatibility and UDP for multiple connections. You can use a PC at the chart table and an iPad on deck. It’s also bidirectional so apps can control an autopilot if this function is available.



Features:

  • NMEA 2000 to WiFi server
  • Self powered from NMEA 2000 bus – fits in seconds
  • Supports TCP/IP and UDP connection modes
  • Provides AIS, navigation and instrument data to apps
  • Compatible with all many popular apps
  • Up to 7 connected devices
  • Compatible with Windows, Linux, MAC OS, iOS and Android
  • Easy web interface for programming
  • Password protected
  • Can act as dedicated wireless server or can connect to an existing wireless network
  • Diagnostic data display mode and LED status lights
  • Internal hi gain WiFi antenna
  • Super-fast 230KBs operation
  • Optional raw data mode for developers and likewise advanced users
  • Supplied with NMEA 2000 drop cable



NavLink 2 Quick Start Guide EN (358 Kb) - Download
