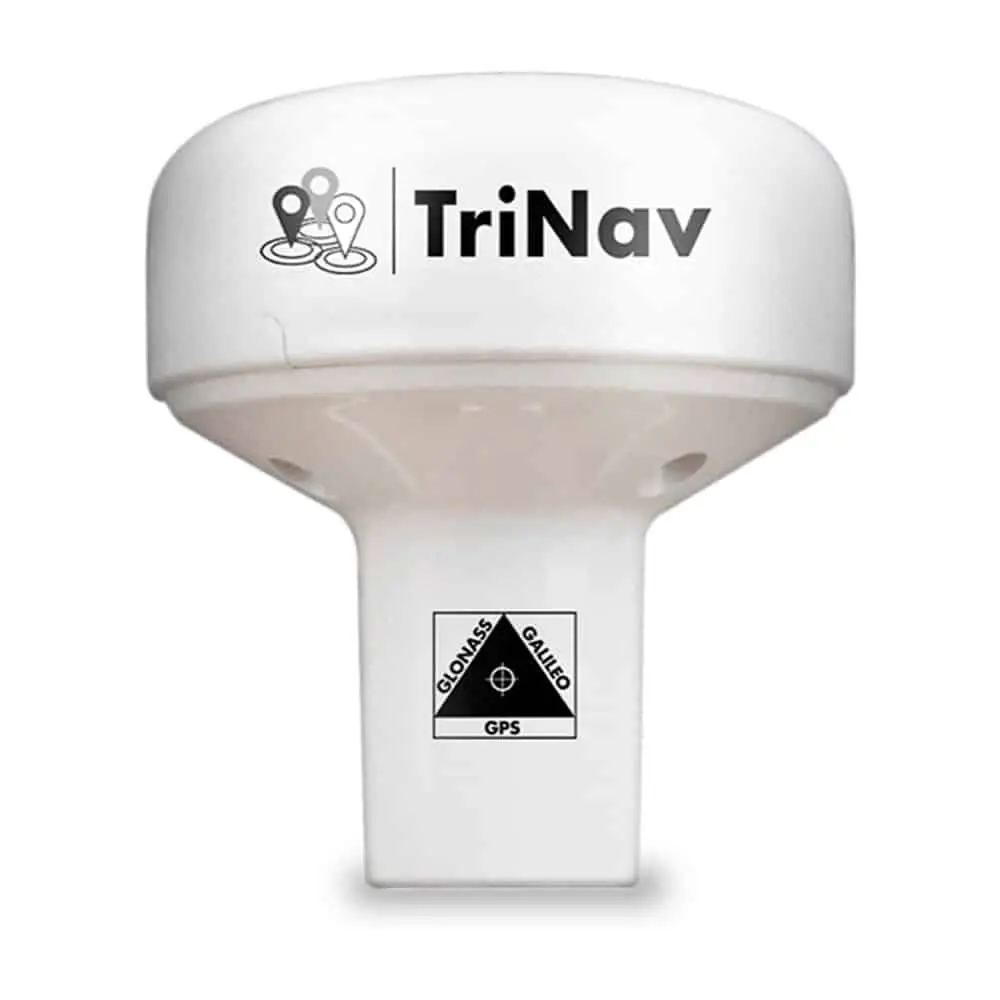

Digital Yacht GPS160 TriNav Position Sensor

List price:170.00 ex. VAT Price:161.94 ex. VAT
Price: 195.95 (inc. VAT)
You save: €8.06 (5%)
Save 5%
DIGITAL YACHT ZDIGGPS160
Last one in stock
+
Shipping Costs:

The GPS160 from Digital Yacht is a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies. The new TriNav technology allows all three systems to be used simultaneously combining signals to compute the best possible fix accuracy and reliability.

Simple user configuration by use of internal dip switches allows the GPS160 to be easily programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc.

The GPS160 also support an optional external MOB switch or device. When activated, the position is automatically saved and GPS160 calculates and outputs a “synthetic” AIS MOB NMEA sentence allowing compatible plotters to mark the MOB position automatically – just as if an AIS SART had been activated. The MOB function can be wired to a simple push button switch or a kill switch and tether or alternatively used with 3rd party wireless MOB systems with any switched alarm output. See the Digital Yacht GPS160 MOB Switch Panel.

The GPS160 TriNav is available with multiple interface options.

NMEA 0183

The GPS160 has a a 10 metre cable for standard NMEA 0183 output for connection to plotters, instruments and systems. Multiple formats of NMEA data output including datum information and 4800, 38400 and 115200 baud operation are easily configured through simple internal DIP switches.

USB

Supplied with a 5m cable. The GPS160USB is self powered from the USB source (PC, MAC or Linux). When installed, a virtual COM port is created on the host PC so navigation programs can receive positioning data. If a longer cable or the MOB feature is required, the standard NMEA 0183 version can be used with a NMEA-USB adaptor cable.

NMEA 2000

For connection to NMEA 2000 systems, the GPS160 is supplied with an iKonvert gateway. The thin NMEA 0183 cable supplied with the GPS160 is easy to route to the nearest point on the NMEA 2000 backbone where the iKonvert can be connected.

SeaTalk 1

For connection to legacy SeaTalk 1 systems, the GPS160 is supplied with an ST-NMEA Data Converter, allowing easy replacement of older Raystar sensors.

Wireless

For connection to smartphones and tablets the GPS160 is supplied with a WLN10 NMEA to wifi gateway.


Features:

  • 72 channel GPS, Glonass and Galileo GNSS positioning receiver
  • Typically sub 1m accuracy thanks to TriNav technology
  • Can be configured as dedicated GPS, Glonass or Galileo only device
  • User selectable 4800, 38400 and 115200 baud operation
  • Multiple formats of NMEA data output including datum information
  • Up to 18Hz update rate (user selectable)
  • 10-30V DC with ultra low (<20mA) power consumption at 12V DC
  • Input for MOB switch/system
  • Puck installation or fits 3rd party industry standard 1” x 14TPI threaded mount
  • Weight: 310g
  • Diameter: 75mm
  • Height: 82.5mm to base of 1” x 14TPI thread
  • Cable length: 10m (GPS160 model) - 5m (GPS160USB model)
  • Waterproof: IPX6
  Product Code GPS160 TriNav Model Availability Price
Digital Yacht GPS160 TriNav Position Sensor - bluemarinestore.com
DIGITAL YACHT ZDIGGPS160
NMEA 0183
In stock
195.95 (inc. VAT)
161.94 (ex. VAT)
DIGITAL YACHT ZDIGMOBSW
28.59 ex. VAT   34.59
Waterproof Man Overboard MOB Switch Panel for use with the GPS160 TriNav. The Digital Yacht GPS160 supports an MOB switch. When activated, the...
In stock
+

AMC TW03/01
1.15 ex. VAT   1.39
Multi core low gauge copper electrical cable for use with low voltage/amperage installations such as electronics, LED lights etc. Features a thin outer...
In stock


DIGITAL YACHT ZDIGUSBNMEA
47.89 ex. VAT   57.95
Easily connect a laptop or on-board computer to NMEA 0183 devices with the bi-directional Digital Yacht USB to NMEA Serial Adaptor cable.  Compatible with...
In stock
+

Digital Yacht GPS160 Manual English (1,147 Kb) - Download
