Blue Wave Stainless Metric Rigging Screw Fork-Fork

List price:62.38 ex. VAT Price:52.85 ex. VAT
Price: 63.95 (inc. VAT)
You save: €9.53 (15%)
Save 15%
BLUE WAVE 120012
Preorder
3 days (approx.)
+
Shipping Costs:

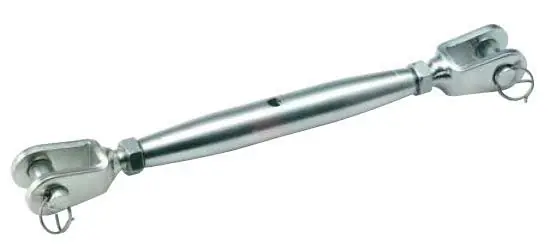

Marine fork-fork stainless steel AISI 316 metric rigging screw (turnbuckle). Very competitively priced metric rigging screw with the all the quality and features we expect from Blue Wave, laser engraved thread size, Blue Wave logo, and side marking of the left thread.

Blue Wave Marine Rigging Screw Metric Fork-Fork


Dimensions in mm and metric thread


Code Gauge Metric For wire size L1 MAX L2 MIN A Pin Size Breakload Weight kg
120005 5mm 2.5mm 180 126 7.5 5.0 800kg 0.051
120006 6mm 3mm 200 138 7.5 5.0 1000kg 0.090
120006X 6mm 3mm/4mm 202 140 9.5 6.0 1200kg 0.140
120008 4mm 4mm 234 158 9.5 6.0 1600kg 0.140
120008X  8mm 4mm/5mm 240 166 11 8.0 2200kg 0.150
120010 10mm 5mm 272 188 11 8.0 32000kg 0.240
120010X 10mm 5mm 280 196 12 9.5 3500kg 0.260
120012 12mm 6mm 350 244 14 12 5100kg 0.525
120014X 14mm 7mm/8mm 405 295 18 14 6900kg 0.845
120016X 16mm 8mm/10mm 446 313 18 16 9400kg 1.000
120020 20mm 10mm/12mm 550 390 24 19 14000kg 1.970
  Product Code Model Thread Size Availability Price
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120005
Standard Model M5 - 5 mm
3 days
21.49 (inc. VAT)
17.76 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120006
Standard Model M6 - 6 mm
3 days
25.10 (inc. VAT)
20.74 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120006X
X Model M6 - 6 mm
3 days
26.18 (inc. VAT)
21.64 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120008
Standard Model M8 - 8 mm
3 days
33.80 (inc. VAT)
27.93 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120008X
X Model M8 - 8 mm
In stock
34.49 (inc. VAT)
28.50 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120010
Standard Model M10 - 10 mm
3 days
42.29 (inc. VAT)
34.95 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120010X
X Model M10 - 10 mm
3 days
45.29 (inc. VAT)
37.43 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120012
Standard Model M12 - 12 mm
3 days
63.95 (inc. VAT)
52.85 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120014X
X Model M14 - 14 mm
3 days
95.95 (inc. VAT)
79.30 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120016X
X Model M16 - 16 mm
3 days
119.95 (inc. VAT)
99.13 (ex. VAT)
Blue Wave Stainless Metric Rigging Screw Fork-Fork - bluemarinestore.com
BLUE WAVE 120020
Standard Model M20 - 20 mm
7 days
236.95 (inc. VAT)
195.83 (ex. VAT)

Blue Wave Stainless Metric Rigging Screw Fork-Fork Dimensions (42 Kb) - Download
