Blue Wave Open Body Rigging Screws UNF Fork-Fork

Price:54.50 ex. VAT
Price: 65.95 (inc. VAT)
BLUE WAVE 130011A
Last one in stock
3 days (approx.)
+
Shipping Costs:

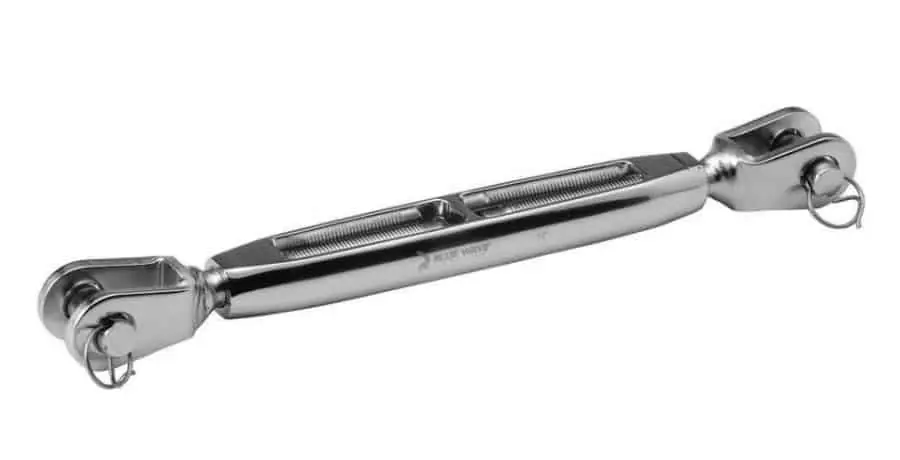

Marine open body UNF fork-fork chromed bronze and stainless steel AISI rigging screw (turnbuckle). The sleek, open chromed bronze body combined with stainless steel AISI screws prevents the threads from seizing up (gauling), a common problem with higher loads on stainless only designs. The open body allows for easier adjustment and inspection. They feature laser engraved thread size, Blue Wave logo, and side marking of the left thread.

Blue Wave Chromed Bronze/Stainless Open Body Rigging Screw UNF Fork-Fork

Dimensions in mm

Code Gauge UNF For wire size L1 MAX L2 MIN A Pin Size Breakload Weight kg
130006A 1/4" 3mm/4mm 205 143 9.5 6.35 1300kg  0.120
130008A 5/16" 4mm 244 168 11 8.0 2200kg  0.160
130010A 3/8" 5mm 299 197 12 9.5 3400kg  0.250
130011A 7/16" 6mm/7mm 312 222 12 11.0 4600kg  0.350
130012A 1/2" 7mm 358 248 14 12.7 6100kg

 0.635

130016AX 5/8" 8mm 450 312 18 16.0 9900kg  1.210
130020A 3/4" 10mm/12mm 562 392 24 19.0 14400kg  2.180
  Product Code Model Availability Price
Blue Wave Open Body Rigging Screws UNF Fork-Fork - bluemarinestore.com
BLUE WAVE 130010A
3/8 - 5 mm
In stock
53.95 (inc. VAT)
44.59 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Fork-Fork - bluemarinestore.com
BLUE WAVE 130006A
1/4 - 3 mm
3 days
37.29 (inc. VAT)
30.82 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Fork-Fork - bluemarinestore.com
BLUE WAVE 130008A
5/16 - 4 mm
3 days
46.79 (inc. VAT)
38.67 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Fork-Fork - bluemarinestore.com
BLUE WAVE 130011A
7/16 - 6 mm
In stock
65.95 (inc. VAT)
54.50 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Fork-Fork - bluemarinestore.com
BLUE WAVE 130012A
1/2 - 7 mm
In stock
71.95 (inc. VAT)
59.46 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Fork-Fork - bluemarinestore.com
BLUE WAVE 130016AX
5/8 - 8 mm
3 days
141.95 (inc. VAT)
117.31 (ex. VAT)
Blue Wave Open Body Rigging Screws UNF Fork-Fork - bluemarinestore.com
BLUE WAVE 130020A
3/4 - 10mm/12 mm
10 days
278.95 (inc. VAT)
230.54 (ex. VAT)
