BEP Marine TS1 Ultrasonic Tank sender


Programming Included
Price:144.59 ex. VAT
Price: 174.95 (inc. VAT)
BEP MARINE TS1
9 in stock
10 days (approx.)
+
Shipping Costs:

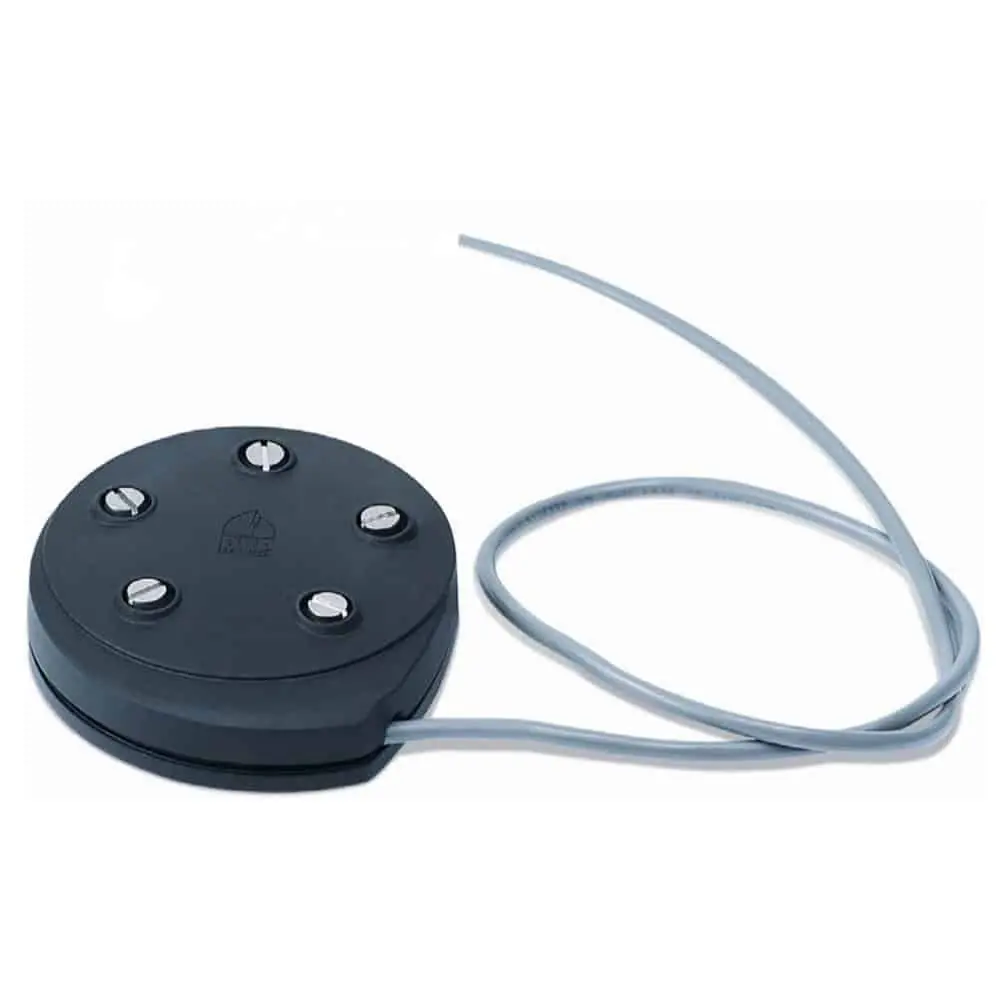

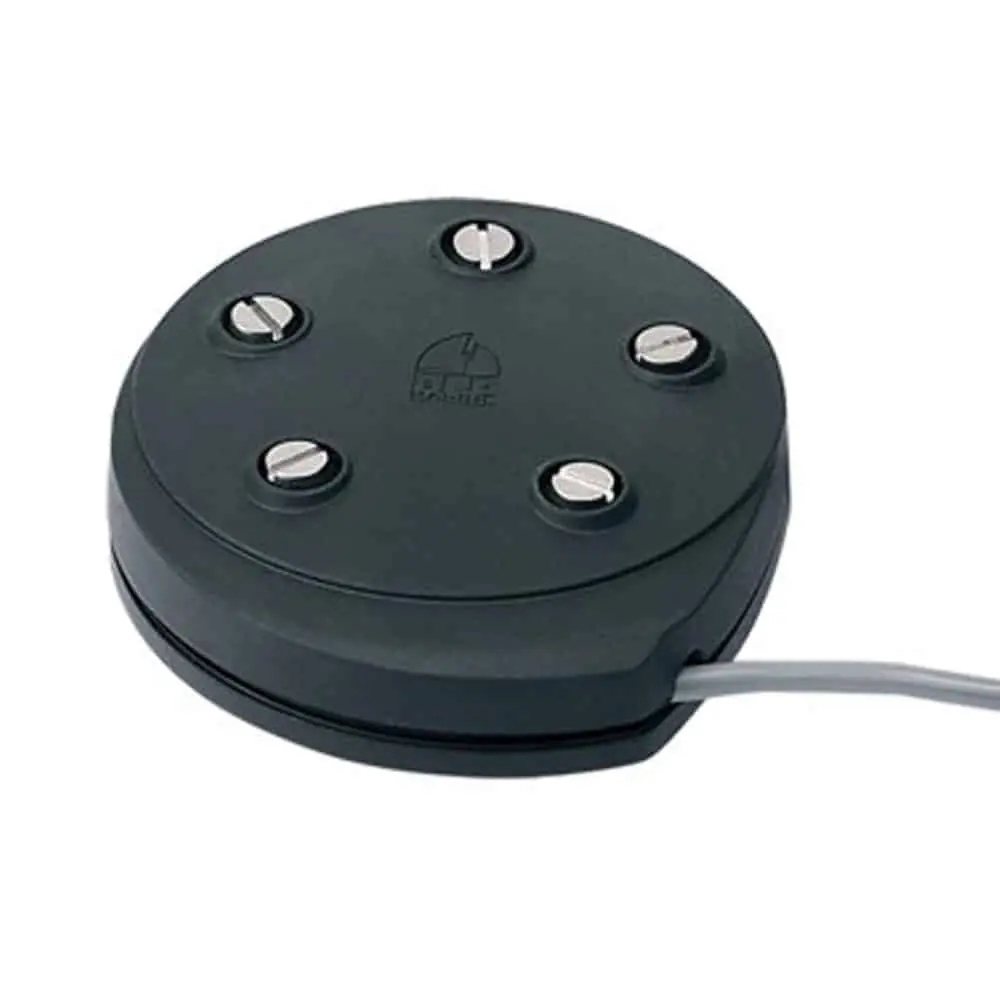

The BEP Marine TS1 is an advanced tank sender suitable for petrol, diesel, water and holding tanks. The TS1 uses ultrasonic measurement technology to measure the distance from the sensor to the surface of the liquid and has no moving parts to block or clog. The TS1 is programmable for most common outputs, either 240-33 Ω, 10-180 Ω or 10-300 Ω for analog resistive gauges (not compatible with digital resistive gauges) or 0-5 V voltage gauges and has a standard SAE 5 hole mounting pattern making it a drop in replacement for almost all existing systems. Compatible with BEP, Teleflex, Faria, VDO, Vetus and many other gauges available.


Accurate indication even with non linear tanks (programming required)

The TS1 from BEP Marine can be used with adjustable gauges or can be programmed to accurately measure the volume of almost any tank, linear or non-linear. Initial custom programming is included in the price and can be reprogrammed by returning the unit or purchasing the TS1-PK Programming Kit.

Features:

  • Programmable for 240-33 Ω, 10-180 Ω, 10-300 Ω analog resistive gauges and 0-5 V voltage tank gauges
  • Low Profile Design and standard SAE 5 hole mounting pattern
  • Programmable for non linear tanks
  • Connects directly to the BEP 600-TLM-N digital tank monitor
  • Operating voltage: 10-32 V. Suitable for both 12 V and 24 V systems
  • Current draw: 25 mA with 5 V gauge output
  • Measurement method: Acoustic sonic measurement
  • Maximum tank depth: 2000 mm (maximum 1100 mm for petrol)
  • Measurement capability: 0-2000 mm at 2 mm accuracy
  • Environmental temperature: 4-65 deg C
  • Suitable for petrol, diesel, fresh water, grey water and black water
  • Suitable for  both metal and plastic tanks with linear or non linear capacity
  • Includes gasket and washers. Requires M4 mounting screws (not included)


Programming Instructions

The TS1 has the following default settings programmed at the manufacturer:

  • Output: Voltage 0-5 V
  • Distance to bottom of tank (empty tank 0%) 2000 mm / distance to liquid (full tank 100%) 10 mm
  • Volume settings: Linear
    • 20% volume at 20% maximum depth (400 mm fluid depth)
    • 40% volume at 40% maximum depth (800 mm fluid depth)
    • 60% volume at 60% maximum depth (1200 mm fluid depth)
    • 80% volume at 80% maximum depth (1600mm fluid depth)

For custom programming see further information and complete the programming form at the following link:

BEP Marine TS1 Ultrasonic Tank Sender Programming Form



** Important TS1 Installation Information**

  • The TS1 must not be mounted closer than 150 mm from the centre of the sender to sides of the tank, baffles or other intrusions
  • Only use on tanks greater than 200mm in depth
  • Sender must be mounted parallel to the surface of the liquid
  • Do not install on flexible tanks that may bulge/distort as fluid levels change
  • TS1 must be programmed according to suit tank shape, depth and fluid type
  • Make sure that sender protrusion is NOT in contact with any object including sealants when mounted
  • Use the gasket and fittings as provided
  • Mount above deepest point of the tank

BEP Marine TS1

BEP Marine TS1 Ultrasonic Sender User Manual EN (512 Kb) - Download

BEP Marine Tank Types and Dimensions (38 Kb) - Download
