Sunware Fox 220 & 320 Solar Regulators

Price:73.55 ex. VAT
Price: 89.00 (inc. VAT)
SUNWARE FOX 220
Last one in stock
Temporarily out of stock
+
Shipping Costs:

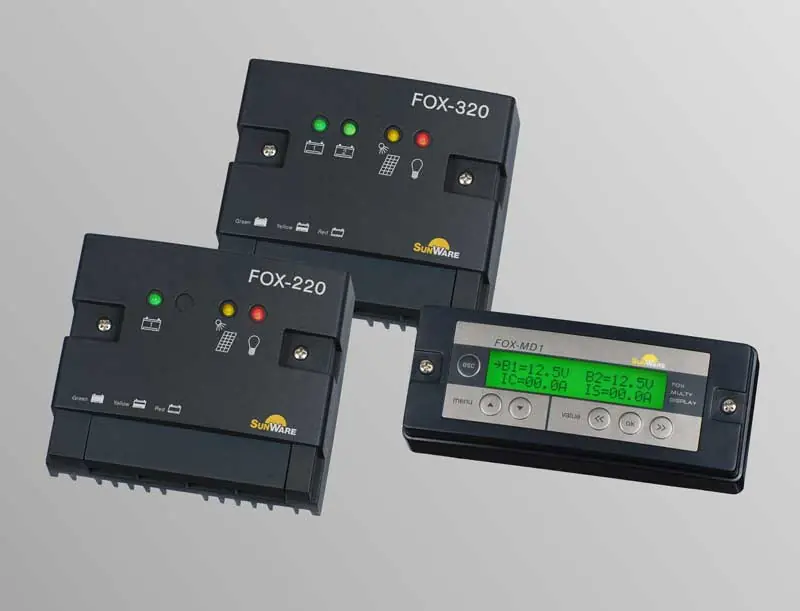

The FOX-220 and FOX-320 are programmable surface mount charge regulators, which can be used either independently or with the FOX MD1 remote programmable display. The LEDs on the front panel of the regulators indicate the charging state of the battery, status of the consumer connection, whether a charge current is flowing from the solar panels or whether the battery is fully charged. The Multi Display FOX MD1 can be added at any time with a simple plug-in connection. This allows the charging voltage and amps to be displayed, even graphically. The programming function of the FOX MD1 enables you to change and save various parameters. The optimised charge characteristic curve in combination with the hardware PWM control achieves a distinctly faster and gentler charging of the battery; hazardous gassing or overcharging are safely prevented.

The charge controller can be operated in parallel to other charging devices (such as alternators, generators, fuel cells) and is suitable for use with panels from any manufacturer (the no-load voltage of the solar modules must be lower than 50 V).

  • Suitable for both 12V and 24V systems with automatic recognition
  • Suitable for multi battery types - Lead-Acid, Gel, AGM
  • Active battery cut-out ensures the protection against reverse current and allows for an extremely low voltage drop between module and battery.
  • Regulation for up to 20amp of solar power (340 Watt solar power at 12V /680 Watt solar power at 24V )
  • Overcharge protection
  • LED indicators

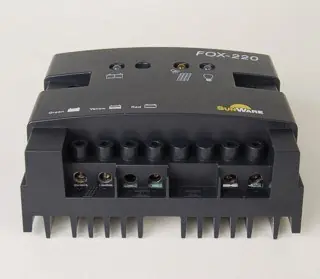

  • Covered terminals for up to 16mm wire
  • Simple installation

A consumer load of up to 20A can be connected through the regulator. The adaptive total discharge protection monitors and protects the battery against damaging total discharge, and alternatively the nightlight function can be used. When using the nightlight function, light will be switched on when the panels are providing a charge current (i.e. when it is dark). Ideal for the operation of an orientation light or small night light for the prevention of break-ins.

In addition to the over-and deep discharge protection of the FOX-220, the FOX-320 can also charge 2 separate battery systems.



  Product Code Model Availability Price
Sunware Fox 220 & 320 Solar Regulators - bluemarinestore.com

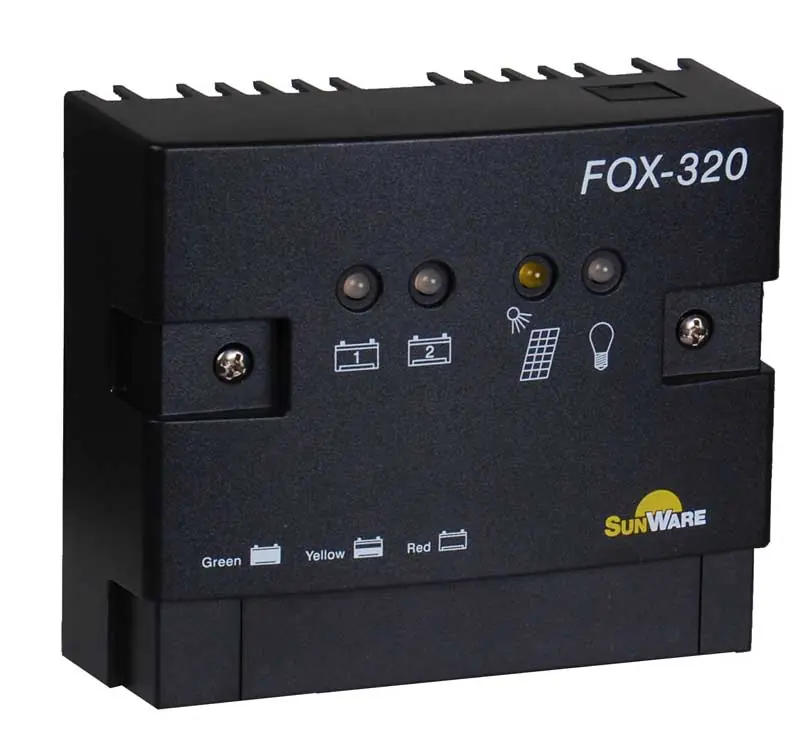

SUNWARE FOX 320
Fox 320 Regulator
Temporarily out of stock
105.00 (inc. VAT)
86.78 (ex. VAT)
Sunware Fox 220 & 320 Solar Regulators - bluemarinestore.com

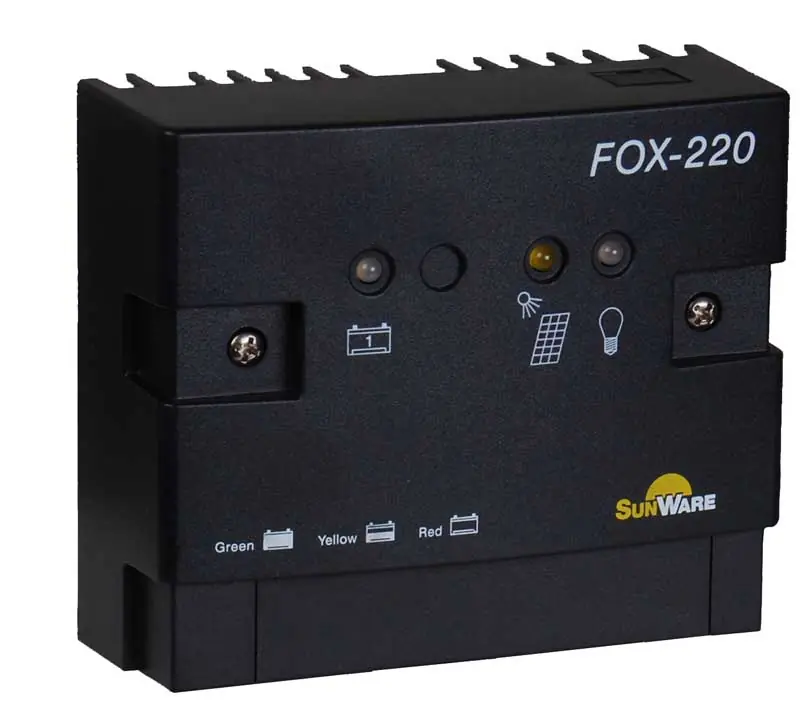

SUNWARE FOX 220
Fox 220 Regulator
In stock
89.00 (inc. VAT)
73.55 (ex. VAT)
SUNWARE FOX MD1
79.34 ex. VAT   96.00
Large LCD remote display and control unit for the Sunware Fox 220 and Fox 320 solar regulators. Suitable for both panel mounting and surface mounting up to...
In stock
+

Fox 220 Installation Manual DE GB FR IT (415 Kb) - Download

Fox 220 Manual de Instalación ES GR SE NL (454 Kb) - Download

Fox 320 Installation Manual DE GB FR IT (421 Kb) - Download

Fox 320 Manual de Instalación ES GR SE NL (478 Kb) - Download

Fox MD1 Installation Manual DE GB FR IT ES GR SE NL (609 Kb) - Download
