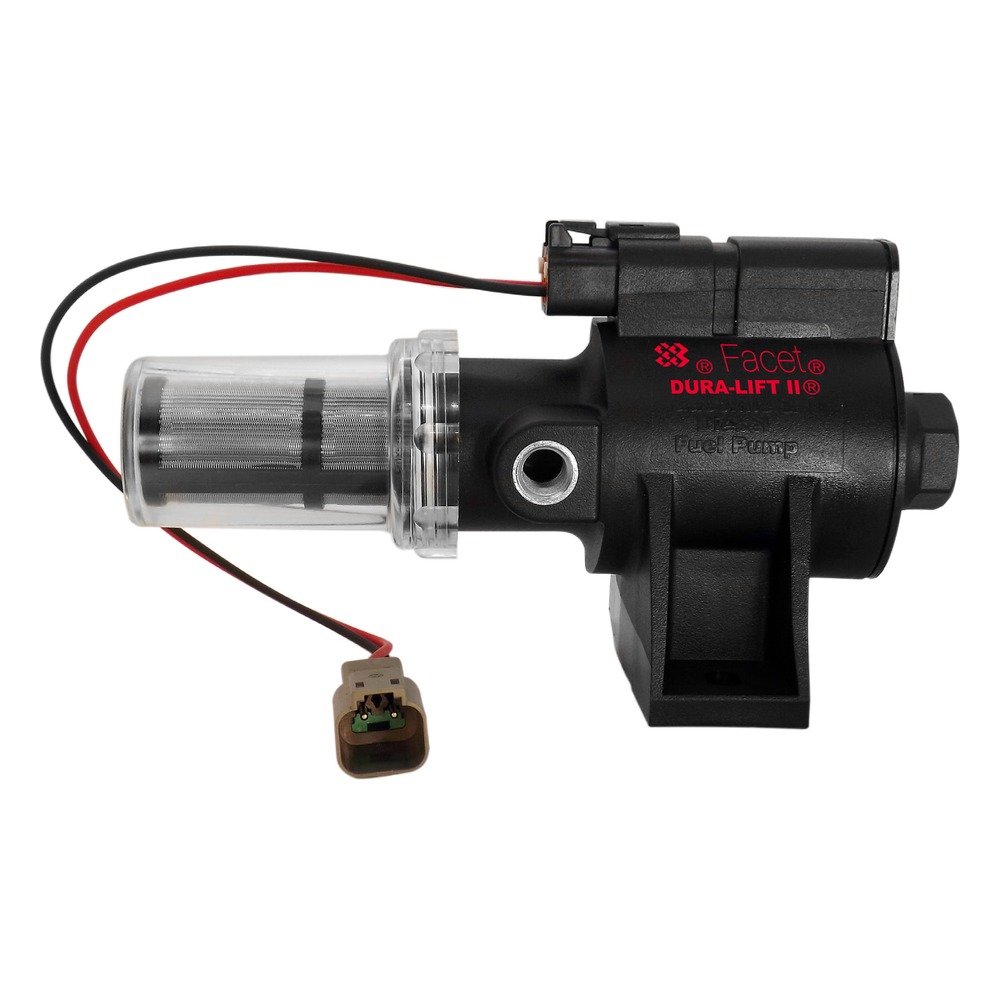

Facet Dura-Lift II 70101-02 Electronic Fuel Pump
Solid state 12 V electronic fuel lift pump from Facet, the replacement for the Facet Dura-Lift 40223. For marine generator sets and diesel lift and transfer, as well as refrigeration truck and trailer units, off-road agricultural and industrial equipment, compressors and welders. Rated for gasoline, ethanol blends, diesel, biodiesel (B100), renewable diesel (HVO) and fuel additives.
Solid State Reliability - sealed, epoxy-potted electronics with microcontroller timing, transient protection and reverse polarity protection. Compared with the original Dura-Lift it is smaller and lighter, with a higher maximum operating temperature and an IP69K rating.
Easy to Install - Facet designed the Dura-Lift II to replace the Dura-Lift. It also shares the mounting dimensions of the Facet Cube, Posi-Flo and Gold-Flo pumps, so it can take their place in the same location where there is enough clearance. Inlet and outlet ports are 1/8-27 NPT.
Easy to Service - internal 74 micron stainless steel filter that can be cleaned or replaced, inside a clear filter bowl for quick inspection of the fuel and filter.
Easy to Connect - removable wiring pigtail with a 2-pin Delphi Weather Pack (Packard) connector.
Features:
- 12 V systems: nominal supply voltage 14 V DC, operating range 8 - 16 V DC
- Pressure 0.55 - 0.83 bar
- Free flow approx. 136 l/h
- Internal check valve
- 74 micron stainless steel filter in a clear filter bowl
- Sealed, epoxy-potted electronics with microcontroller timing
- Transient protection
- Reverse polarity protection (to -101 V DC)
- IP69K
- 96 hour salt spray tested (ASTM B117)
- Operating temperature -40 °C to 93 °C
- Low power - approx. 2 A average
- Dry run up to 4 hours maximum
- 1/8-27 NPT ports
- Weight approx. 0.64 kg
- REACH and RoHS compliant
| Ref. | Volts V | BAR | l/h |
| 70101-02 | 12 | 0.55 - 0.83 | 136 |

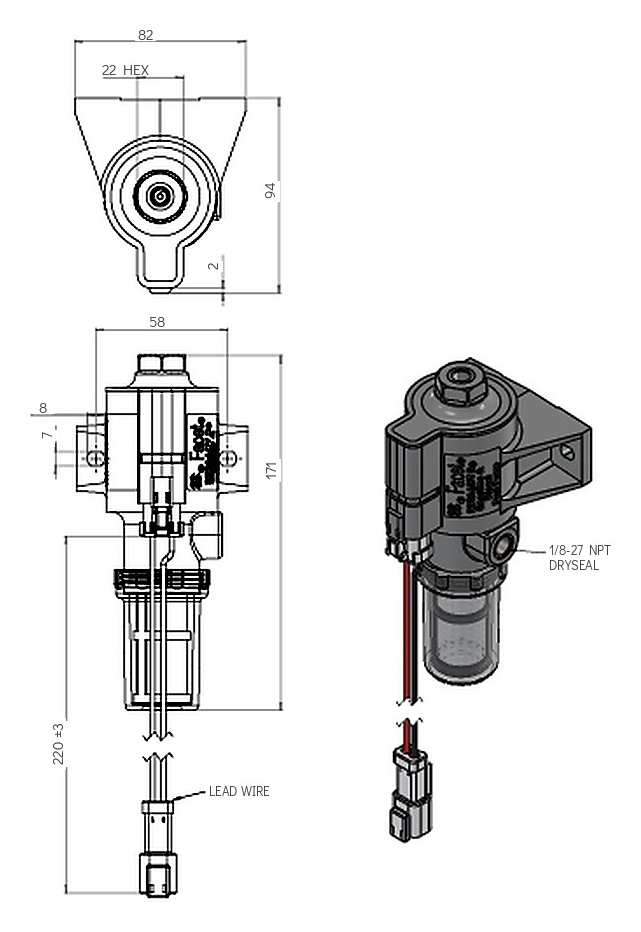

Dimensions in mm.
