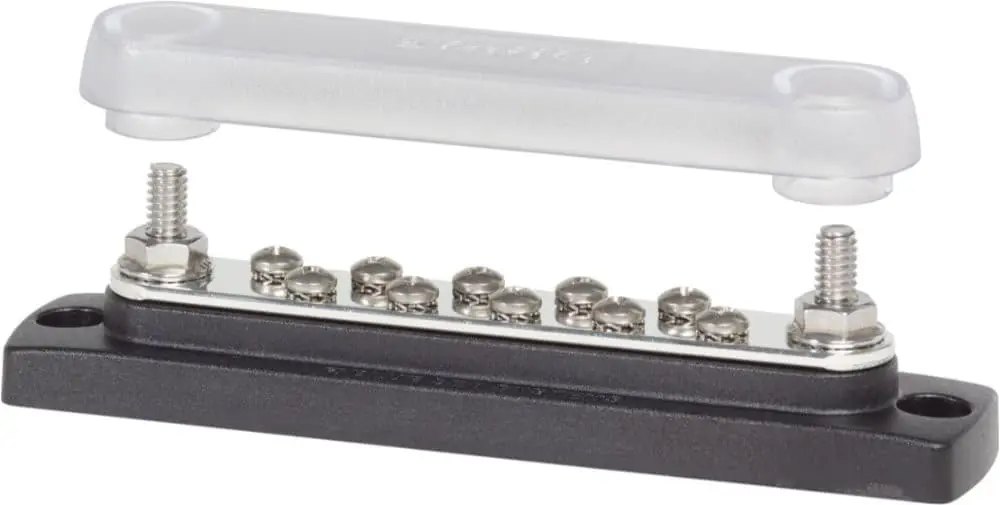

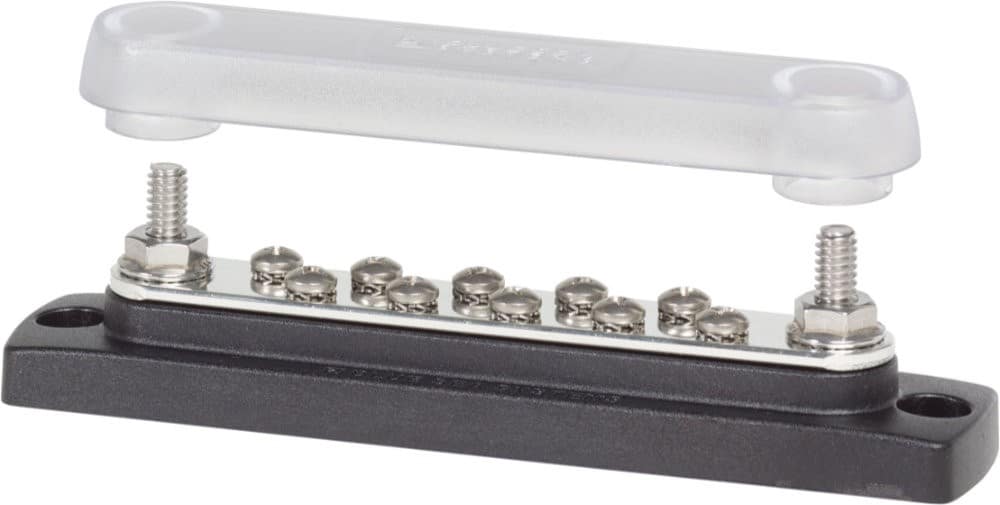

Blue Sea Systems 150A - 10 Point Busbar with Cover

Blue Sea Systems

Price:16.49 ex. VAT

Price: 19.95 (inc. VAT)
BLUE SEA SYSTEMS 2300
In stock
+
Add to wish list
  • Check Shipping Cost

Tin Plated 150 Ampere copper busbar with cover. The industry standard in medium amperage busbars. Perfect for positive power distribution and negative collection.

Two 1/4" - 20 Stainless steel studs and 10 #8-32 connection screws.

  • Stud design provides direct terminal to bus contact for low resistant connection
  • Stainless Steel studs allow high torquing for excellent electrical contact
  • Great for limited space applications in electronics, cabinets and under dashboards
  • Tin-Plated copper bus won't corrode and stays conductive
  • Press on insulating cover attaches to studs and allows unobstructed wire access


Specifications:

 Blue Sea Systems 150A - 10 Point Busbar with Cover
Bus Material

Tin Plated Copper

Base Material Glass reinforced Polycarbonate
Cover Material

Polycarbonate

Maximum Operating Voltage Vmxo

48 Volts DC/ 300 Volts AC

Contimuous Rating Ic 150 Amperes DC / 130 Amperes AC
 Stud Size / Screw Size 2 x 1/4"-20 / 10 x #8-32
 Mounting Holes

#10 M5 Screws

Weight

0.37lbs/0.16kg

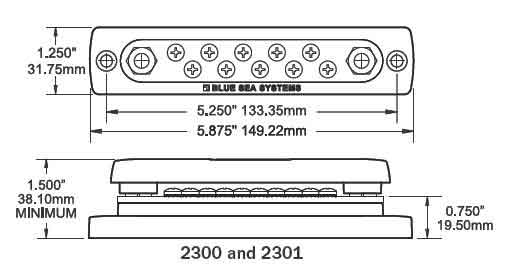

 Blue sea systems 10 point 150 amp busbar dimensions
