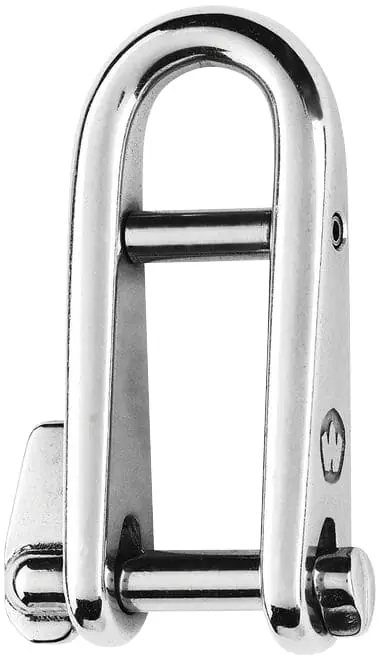

Wichard Key Pin Shackle

Price:24.04 ex. VAT
Price: 29.09 (inc. VAT)
WICHARD 81434
4 in stock
3 days (approx.)
+
Shipping Costs:

Top quality patented forged stainless steel 316L shackles designed and made in France. Wichard Key Pin shackles are easy to use even with one hand and can be opened quickly with half a turn. The pin is captive and cannot fall out when open and locks into the closed position to avoid loosening when in use.
Ideal for many uses onboard.

Available in two models, with and without retainer bar.

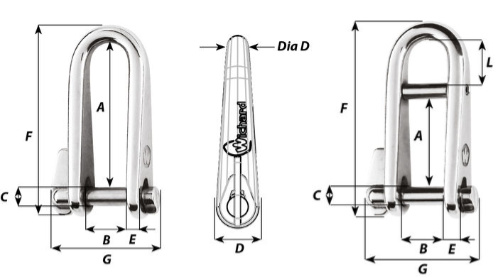

Wichard Key Pin Shackle

Ref. Type Size
C
A
mm
B
mm
D
mm
Dia. D
mm
E
mm
F
mm
G
mm
L
mm
Working Load *
kg
Breaking Load
kg
Weight
kg
1432 Long D 5 mm 37 13  11 5 4 49 31 - 400 1000 0.031
1433 Long D 6 mm 45 16 13 6 4 60 37 - 520 1500 0.048
1434 Long D 8 mm 59 21 17 8 6 79 49 - 800 2300 0.121
81432 Long D
with Bar
5 mm 37 13 11 5 4 49 31 12 400 1200 0.031
81433 Long D
with Bar
6 mm 45 16 13 6 4 60 37 15 520 1700 0.052
81434 Long D
with Bar
8 mm 59 21 17 8 6 79 49 20 800 2500 0.123

* Working loads indicated are for marine use. For industrial use working load = breaking load/5.

  Product Code Key Pin Shackle - Model Key Pin Shackle - Size Availability Price
Wichard Key Pin Shackle - bluemarinestore.com
WICHARD 1432
Long D 5 mm
In stock
9.89 (inc. VAT)
8.17 (ex. VAT)
Wichard Key Pin Shackle - bluemarinestore.com
WICHARD 1433
Long D 6 mm
In stock
13.19 (inc. VAT)
10.90 (ex. VAT)
Wichard Key Pin Shackle - bluemarinestore.com
WICHARD 1434
Long D 8 mm
In stock
23.99 (inc. VAT)
19.83 (ex. VAT)
Wichard Key Pin Shackle - bluemarinestore.com
WICHARD 81432
Long D with Bar 5 mm
In stock
13.99 (inc. VAT)
11.56 (ex. VAT)
Wichard Key Pin Shackle - bluemarinestore.com
WICHARD 81433
Long D with Bar 6 mm
In stock
17.90 (inc. VAT)
14.79 (ex. VAT)
Wichard Key Pin Shackle - bluemarinestore.com
WICHARD 81434
Long D with Bar 8 mm
In stock
29.09 (inc. VAT)
24.04 (ex. VAT)

No posts found

Write a review

Top quality patented forged stainless steel 316L shackles designed and made in France. Wichard Key Pin shackles are easy to use even with one hand and can be opened quickly with half a turn. The pin is captive and cannot fall out when open and locks into the closed position to avoid loosening when in use.
Ideal for many uses onboard.

Available in two models, with and without retainer bar.

Wichard Key Pin Shackle

Ref. Type Size
C
A
mm
B
mm
D
mm
Dia. D
mm
E
mm
F
mm
G
mm
L
mm
Working Load *
kg
Breaking Load
kg
Weight
kg
1432 Long D 5 mm 37 13  11 5 4 49 31 - 400 1000 0.031
1433 Long D 6 mm 45 16 13 6 4 60 37 - 520 1500 0.048
1434 Long D 8 mm 59 21 17 8 6 79 49 - 800 2300 0.121
81432 Long D
with Bar
5 mm 37 13 11 5 4 49 31 12 400 1200 0.031
81433 Long D
with Bar
6 mm 45 16 13 6 4 60 37 15 520 1700 0.052
81434 Long D
with Bar
8 mm 59 21 17 8 6 79 49 20 800 2500 0.123

* Working loads indicated are for marine use. For industrial use working load = breaking load/5.
