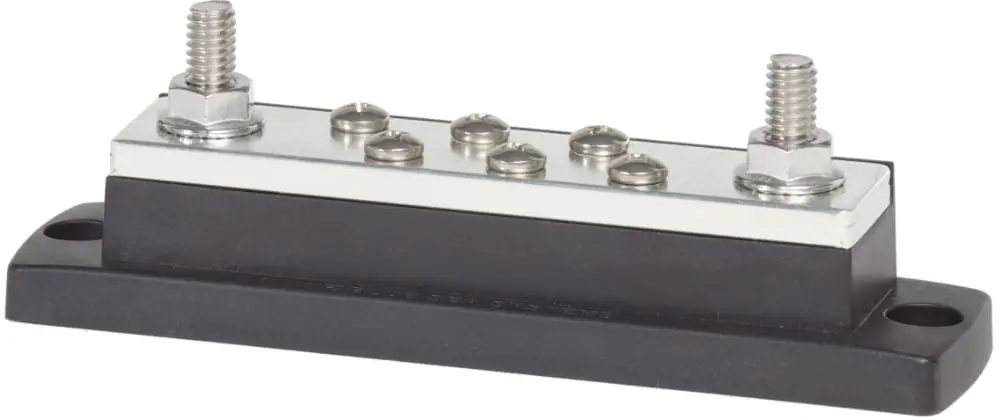

Blue Sea Systems MaxiBus 250 A BusBar

Price:44.59 ex. VAT
Price: 53.95 (inc. VAT)
BLUE SEA SYSTEMS 2128
Preorder
7 days (approx.)
+
Shipping Costs:

Tin Plated 250 Ampere copper busbar, used to consolidate multiple wires or feed multiple circuits.

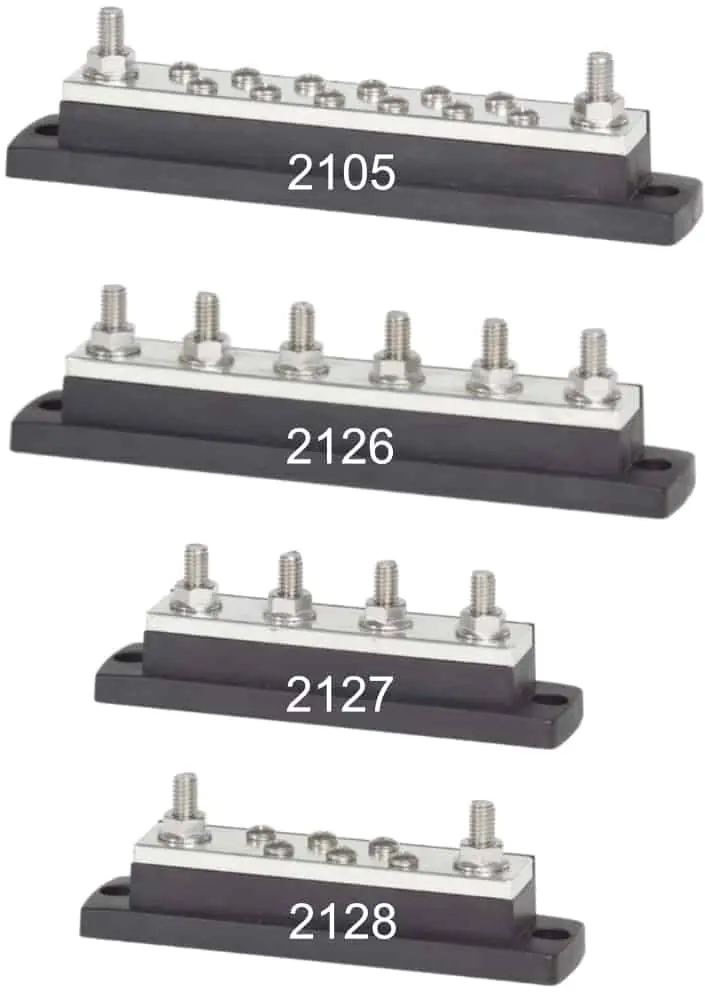

Available in four versions, the 2105 with two 5/16" studs and twelve #10-24 screws, the 2126 with six 5/16" studs, the 2127 with four 5/16" studs and the 2128 with two 5/16" studs and six #10-24 screws.

  • Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
  • Raised bus provides easy access to multiple wires on a single stud
  • UL 94-V0 rated base material resists high heat
  • Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
  • Stud design provides direct terminal to bus contact for low resistant connection
  • Great for limited space applications in electronics, cabinets and under dashboards
  • Tin-Plated copper bus won't corrode and stays conductive

Specifications:

Model 2105 2126 2127 2128
Max. Voltage 300V AC / 48V DC
N° of studs x Size 2 x 5/16"-18 Stud
12 x #10-24 Screw
6 x 5/16"-18 Stud 4 x 5/16"-18 Stud 2 x 5/16"-18 Stud
6 x #10-24 Screw

Continuous Rating Ic 250A
Base Material UL94-V0 Glass Reinforced Plastic
Bus Material Tin Plated Copper CDA 110/UNS11000
Mounting Holes #10 (∼M5) Screws
Recommended Stud Torque 132 in-lb (14.91 N·m)
Weight 0.36 kg
  Product Code MaxiBus 250 A Availability Price
Blue Sea Systems MaxiBus 250 A BusBar - bluemarinestore.com
BLUE SEA SYSTEMS 2105
2105
In stock
82.95 (inc. VAT)
68.55 (ex. VAT)
Blue Sea Systems MaxiBus 250 A BusBar - bluemarinestore.com
BLUE SEA SYSTEMS 2126
2126
In stock
88.95 (inc. VAT)
73.51 (ex. VAT)
Blue Sea Systems MaxiBus 250 A BusBar - bluemarinestore.com
BLUE SEA SYSTEMS 2127
2127
In stock
56.95 (inc. VAT)
47.07 (ex. VAT)
Blue Sea Systems MaxiBus 250 A BusBar - bluemarinestore.com
BLUE SEA SYSTEMS 2128
2128
7 days
53.95 (inc. VAT)
44.59 (ex. VAT)

Blue Sea Systems 2105 Dimensions (96 Kb) - Download

Blue Sea Systems 2126 Dimensions (84 Kb) - Download

Blue Sea Systems 2127 Dimensions (80 Kb) - Download

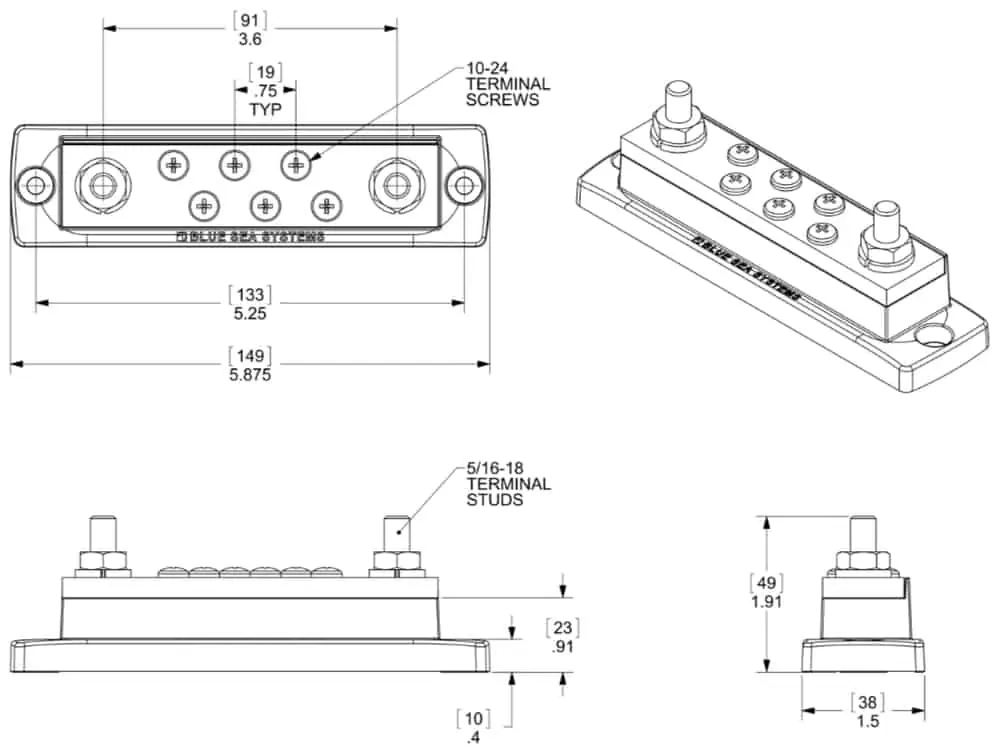

Blue Sea Systems 2128 Dimensions (86 Kb) - Download
