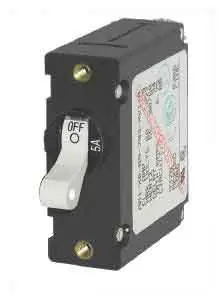

Blue Sea Systems A-Series Toggle Circuit Breaker
Panel mount magnetic-hydraulic circuit breakers from Blue Sea Systems. Trip Free - designed to trip even if the reset lever is held in the on position. Combines switch and circuit breaker in one unit.
Used with the A-series mounting panel for simple installation.
Specifications:
| Maximum Operating Voltage Vmxo | 65 Volts DC |
| Minimum Operating Temperature Tmno | -40°C |
| Maximum Operating Temperature Tmxo | +85°C |
| Type | Magnetic - Hydraulic - Trip Free |
| Terminal Screw | #10-32 |
| Terminal Screw Torque | 14-15 in-lb |
| Weight | 0.17lb / 0.08kg |
| Code | A-Series | Availability | Price | |
|---|---|---|---|---|
|
BLUE SEA SYSTEMS 7202
|
In stock
|
€25.79 (inc. VAT)
€21.31 (ex. VAT) |
|
|
BLUE SEA SYSTEMS 7206
|
In stock
|
€25.79 (inc. VAT)
€21.31 (ex. VAT) |
|
|
BLUE SEA SYSTEMS 7210
|
In stock
|
€26.60 (inc. VAT)
€21.98 (ex. VAT) |
|
|
BLUE SEA SYSTEMS 7214
|
In stock
|
€25.79 (inc. VAT)
€21.31 (ex. VAT) |
|
|
BLUE SEA SYSTEMS 7218
|
In stock
|
€25.69 (inc. VAT)
€21.23 (ex. VAT) |
|
|
BLUE SEA SYSTEMS 7222
|
10 days
|
€25.79 (inc. VAT)
€21.31 (ex. VAT) |
|
|
BLUE SEA SYSTEMS 7226
|
10 days
|
€25.79 (inc. VAT)
€21.31 (ex. VAT) |
