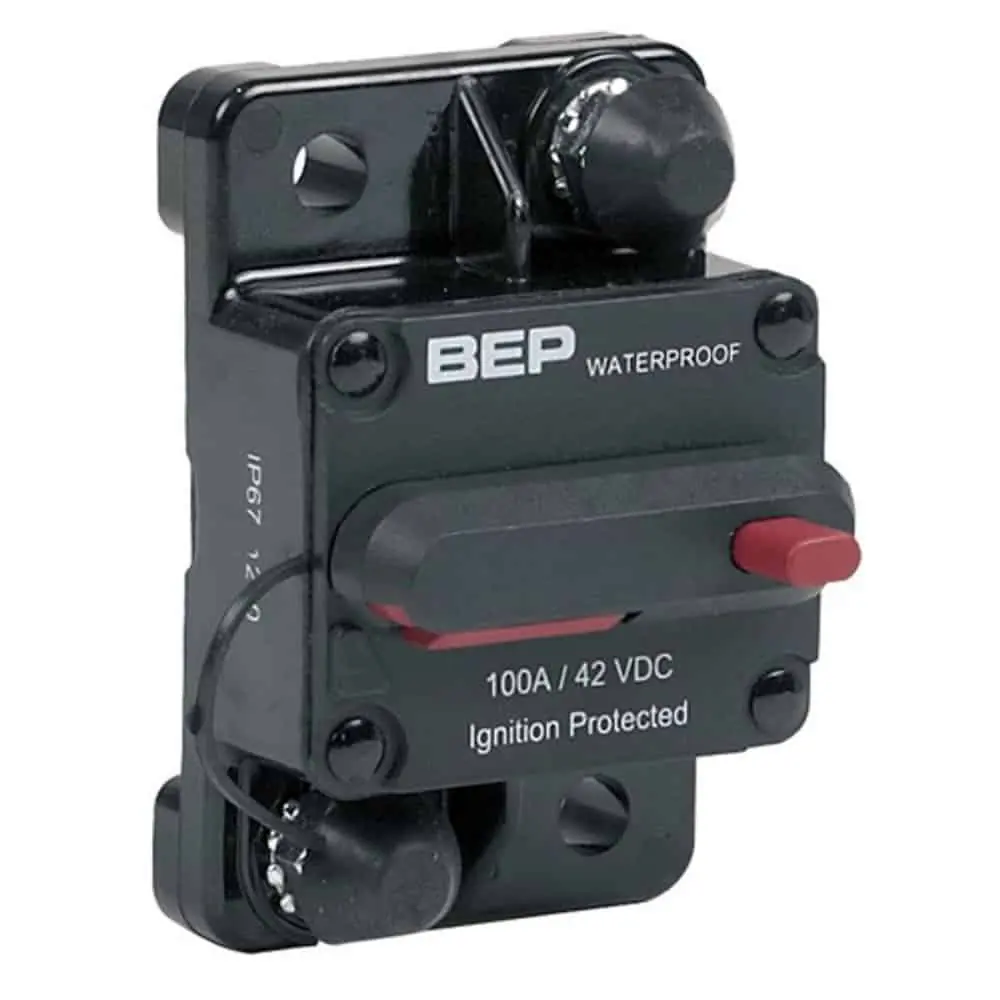

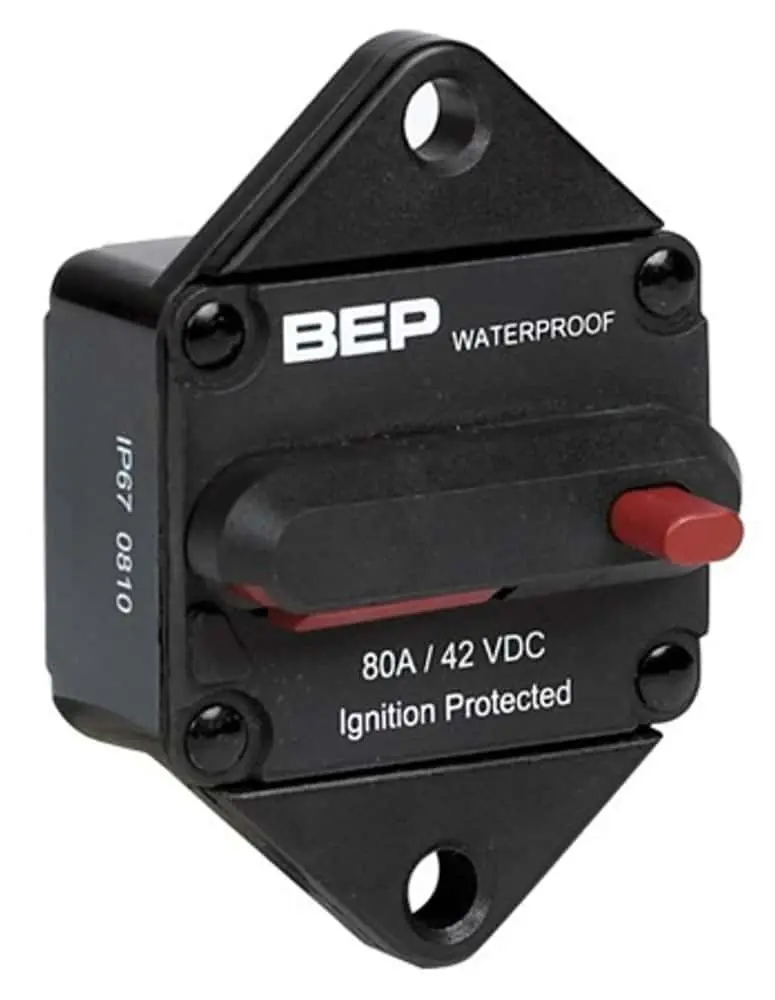

BEP Marine 185 Series Switchable Thermal Circuit Breaker
Heavy-duty single pole switchable thermal circuit breaker available in surface mount and panel/flush mount versions with ratings from 30 A to 150 A.
BEP Marine 185 series are sealed and weatherproof to IP67 and are ignition protected for use in bile areas or engine compartments. A unique reset mechanism provides both a visible indication of the tripped condition and allows manual operation. Tin plated copper studs and stainless steel locking nuts avoid corrosion and ensure a long service life.
Features:
- Ratings: 30–150 A; 30V DC
- 3000A interrupt capacity
- Operating Temperature: -32°C to 82°C
- Housing: Thermoset plastic; UL rated 94VO; 155°C

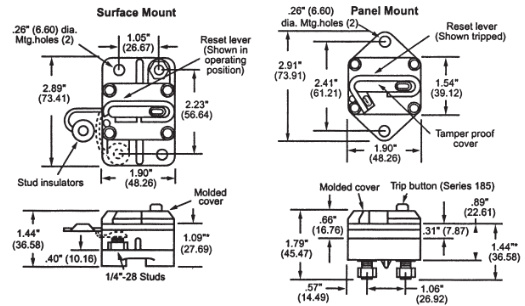

- Mounting: Panel or surface
- Terminal Stud Torque: 50 in-lb (5.6Nm)
- Protection Rating: IP67
- Approvals: Complies with SAEJ1625, J1171 and UL1500 (Ignition protected) specifications
| Code | BEP Marine 185-Series Type | BEP Marine Serie-185 Model | Availability | Price | |
|---|---|---|---|---|---|
|
BEP MARINE 185030F/DSP
|
In stock
|
€75.95 (inc. VAT)
€62.77 (ex. VAT) |
||
|
BEP MARINE 185150F/DSP
|
In stock
|
€75.95 (inc. VAT)
€62.77 (ex. VAT) |
||
|
BEP MARINE 185040F/DSP
|
In stock
|
€76.96 (inc. VAT)
€63.60 (ex. VAT) |
||
|
BEP MARINE 185050F/DSP
|
In stock
|
€85.95 (inc. VAT)
€71.03 (ex. VAT) |
||
|
BEP MARINE 185080F/DSP
|
In stock
|
€76.96 (inc. VAT)
€63.60 (ex. VAT) |
||
|
BEP MARINE 185100F/DSP
|
In stock
|
€75.95 (inc. VAT)
€62.77 (ex. VAT) |
||
|
BEP MARINE 185150P/DSP
|
In stock
|
€63.95 (inc. VAT)
€52.85 (ex. VAT) |
||
|
BEP MARINE 185040P/DSP
|
10 days
|
€74.95 (inc. VAT)
€61.94 (ex. VAT) |
||
|
BEP MARINE 185050P/DSP
|
In stock
|
€69.95 (inc. VAT)
€57.81 (ex. VAT) |
||
|
BEP MARINE 185080P/DSP
|
In stock
|
€60.95 (inc. VAT)
€50.37 (ex. VAT) |
||
|
BEP MARINE 185100P/DSP
|
In stock
|
€75.95 (inc. VAT)
€62.77 (ex. VAT) |
||
|
BEP MARINE 185120P/DSP
|
In stock
|
€74.95 (inc. VAT)
€61.94 (ex. VAT) |
||
|
BEP MARINE 185135P/DSP
|
In stock
|
€76.96 (inc. VAT)
€63.60 (ex. VAT) |
