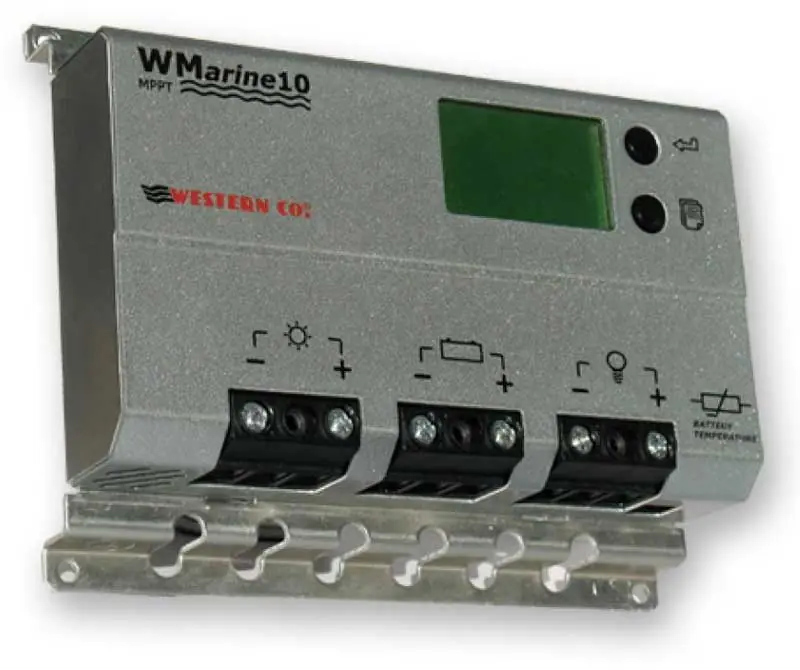

WMarine10 MPPT Solar Regulator with Buck Boost
Shipping Costs:
10 AMP MPPT Solar Regulator with Buck Boost for low voltage solar panels.
The Western Co. WMarine 10 is a versatile MPPT controller suitable for use with both 12v and 24v systems and panels and due the built in buck boost circuit can be used with solar panels which have a voltage ouput lower than the batteries to be charged. The wide range voltage input allows the use of 5V-40V Voc solar panels for either 12v or 24v systems. Tried and tested in a multitude of industrial applications from road signs to weather stations, CCTV and buoys.
The Wmarine 10 uses the solar panels as a day/night sensor which combined with 18 different user selectable programs and the consumer output allows a multitude of consumer control options e.g. on only at night or on only during the day or on for a set number of hours. The built in LCD display shows system status and settings as well as solar output, battery voltage and energy consumed etc.
Battery temperature sensor included.
Features:
- MPPT charger with buck-boost circuit
- Integrated blocking diode
- Suitable for AGM, GEL and lead acid batteries
- Automatic detection of 12v or 24v system
- Max PV module power: 120W for 12v - 220W for 24V
- Charge voltage temperature compensation (cable included)
- 18 programs for load management
- LCD with 48 symbols for user interface
- Low battery protection
- Over temperature protection
- Protection for battery inverse polarity
- Overload protection on consumer output
